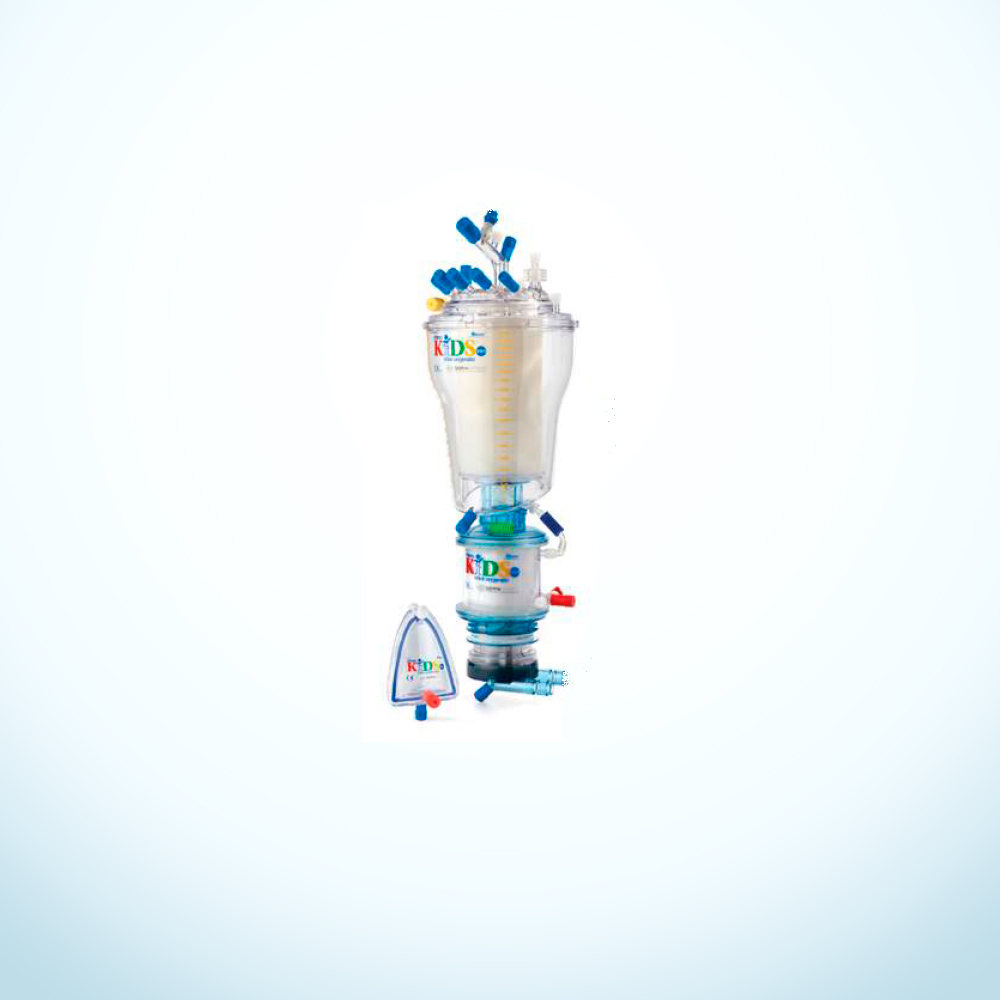

D101 Infant Oxygenator D131 Infant Arterial Filter

Designed for the WIDEST RANGE of pediatric patients.

SKU: liva_d101 Categoría: Etiqueta:

Product Specifications D101 Oxygenator


Static priming volume (ml) 87
Membrane surface area (m2) 0.61
Max blood flow (maxflow, ml/min) 2500
Reference flow AAMI (ml/min) 3500*
DP @ maxflow (mmhg) 155
Heat exchanger surface area (m2) 0.06
Heat exchanger efficiency @ maxflow (%) 61
Hardshell reservoir
Capacity (ml) 1500
Minimum operating level (ml) 30
Cardiotomy filter pore size (μm) 33
Venous filter pore size (μm) 51
Pressure relief valve +5/-80 mmHg
Oxygenator module connections
Venous inlet 1/4”
Arterial outlet 1/4”
Hard-shell reservoir connections
Venous return 3/8” – 1/4”
Outlet 1/4”
Filtered ports
Suction inlets 3 x 1/4” + 2 x 3/16”
Vertical inlet 1/4”
Additional inlets 4 x LL
Unfiltered port LL
Coating Phosphorylcholine

*AAMI reference flow is the flow in which oxygen delivery equals 40 ml/min/L of blood
flow under AAMI standard conditions (35% Hct, 37C, Hgb=12 mg/dl, FiO2=100%).
