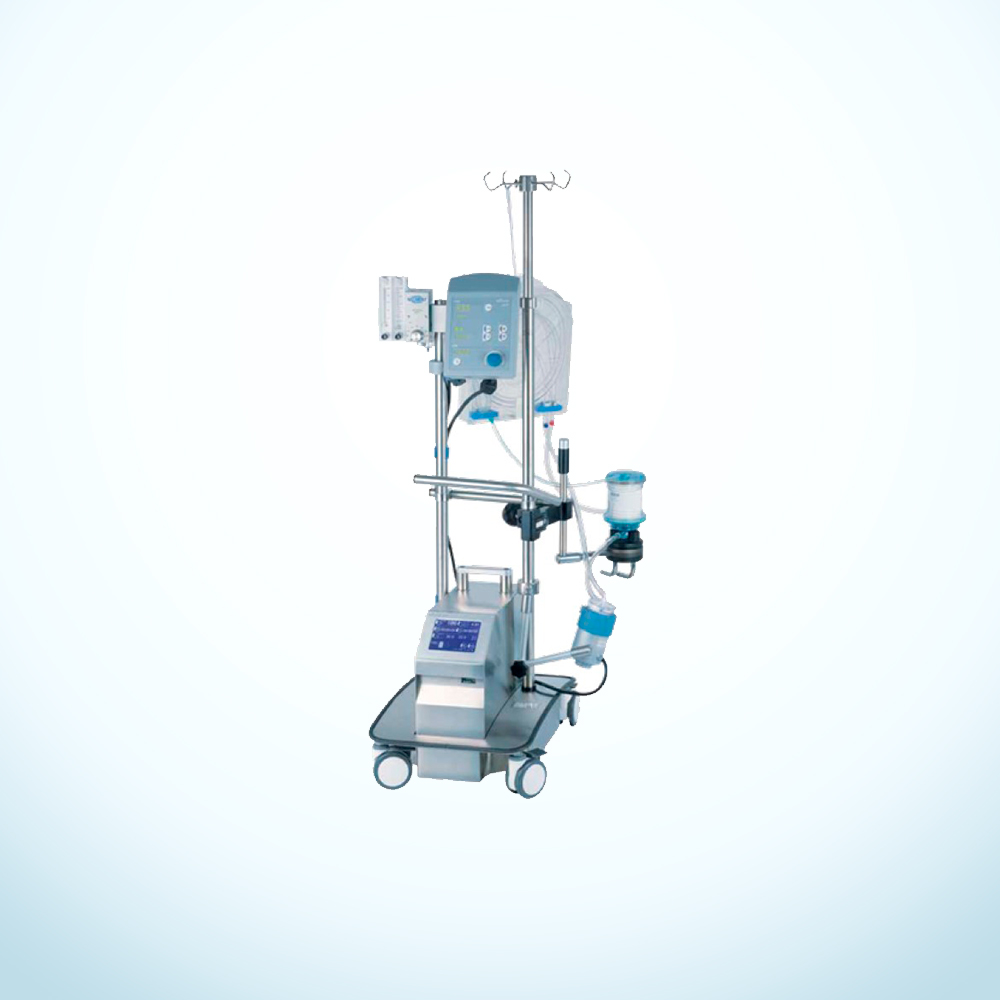

The trolley’s unique design is a milestone in meeting the users’ expectations of a flexible and mobile cardiopulmonary bypass system.
The SCPC is securely seated in the trolley’s solid, stainless steel console.
Four easily steerable casters guarantee its excellent manoeuvrability. In addition, the height of the trolley`s push grip can be adjusted as desired to facilitate transportation. For mounting the accessories, the SCPC trolley features a vertical mast and a telescope mast with rotatable infusion rack. The SCP pump control panel and the drive unit, the electrical remote-controlled tubing clamp as well as other accessories or disposables may be
mounted to the mast system.
SCPC Adapter Plates
In order to guarantee the safe operation of the SCPC system with various heart-lung machines, we offer the corresponding adapter plates.
|Product designation||Part number|
complete, consists of:
|1 telescope mast
with infusion rack
|1 vertical mast||60-04-25|
|1 push grip||60-04-46|
|Dimensions and Weight|
|Width (with push grip)||425 mm (16.7 in.)|
|Height||165 mm (6.5 in.)|
|Depth||609 mm (23.8 in.)|
|Weight||21.5 kg (47.4 lbs.)|
